Clinical application value of contrast transthoracic echocardiography in screening patent foramen ovale with right to left shunt
-
摘要:

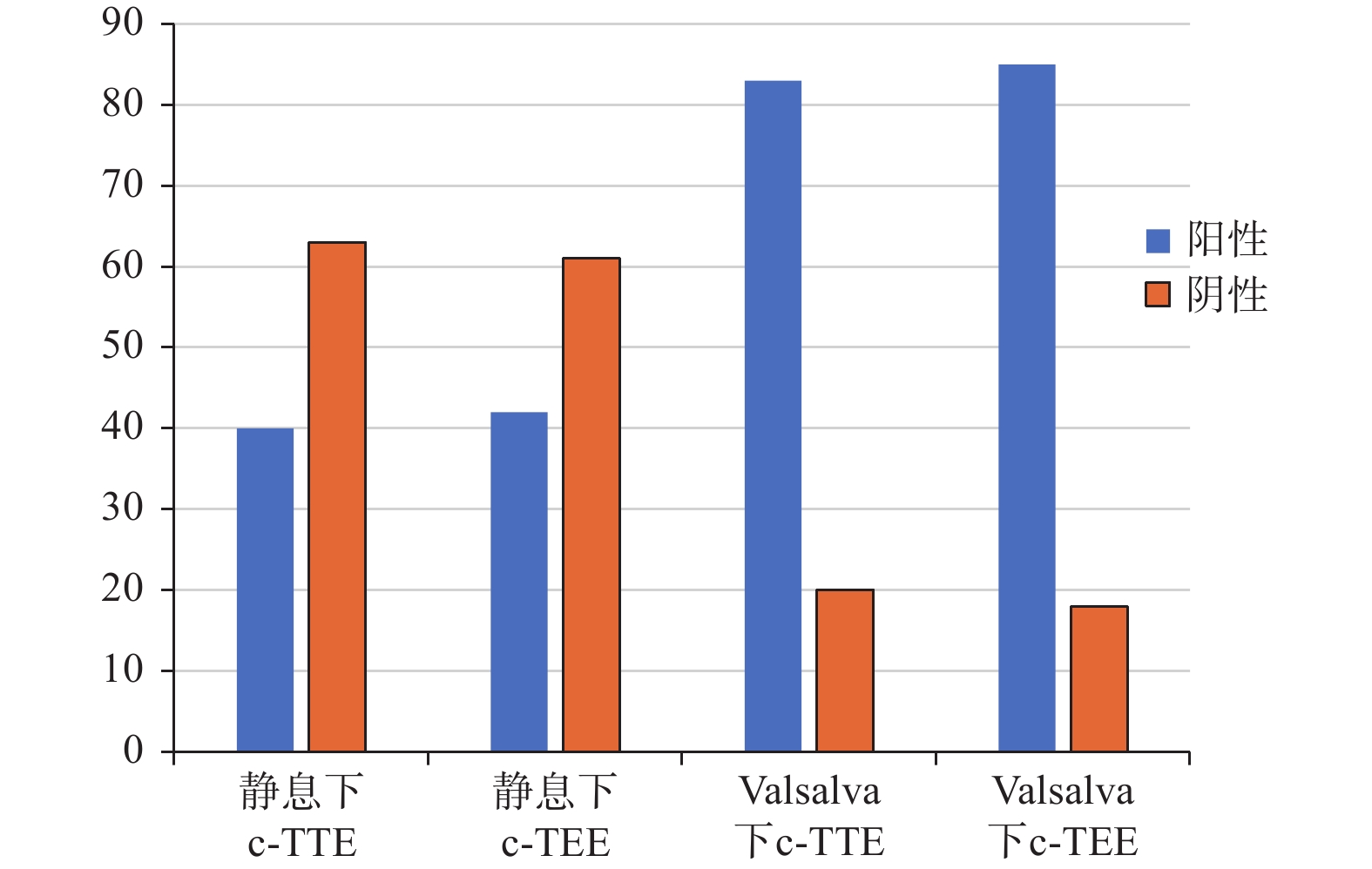

目的 探讨经胸超声心动图造影（c-TTE）筛查卵圆孔未闭合并右向左分流（PFO-RLS）的应用价值。 方法 收集我院神经内科因偏头疼或隐源性脑卒中就诊初步怀疑PFO患者103例，依次接受c-TTE和经食管超声心动图造影（c-TEE）检查，观察静息和Valsalva动作下，c-TTE和c-TEE检出PFO-RLS的阳性率；以c-TEE检查结果为金标准，观察静息和Valsalva 动作下 c-TTE对PFO-RLS诊断效能评价。 结果 静息状态下c-TTE的阳性率为38.83%，c-TEE阳性率为40.78%，Valsalva动作下两种检查方法的阳性率均显著性提高（均P<0.05），分别为80.58%与82.52%，静息和Valsalva动作下，c-TTE与c-TEE两组间阳性率比较差异均无统计学意义；相对于金标准c-TEE，静息状态c-TTE对PFO-RLS的阳性预测值为100%，阴性预测值为96.82%，灵敏度为95.23%，特异度为100%，准确率为98.05%，一致性Kappa值为0.95。Valsalva动作下，c-TTE对PFO-RLS的阳性预测值为98.79%，阴性预测值为85.00%，灵敏度为96.47%，特异度为94.44%，准确率为96.11%，一致性Kappa值为0.87。 结论 对于诊断PFO-RLS患者，c-TTE具有较高的灵敏度、特异度及准确度，且微创、痛苦小，简单方便、易在临床推广应用，可将其作为PFO-RLS患者早期筛查手段，对准备行PFO封堵治疗的患者，进一步行c-TEE检查观察PFO解剖形态。 -
关键词:
- 卵圆孔未闭 /
- 右向左分流 /
- 经胸超声心动图造影 /
- 经食管超声心动图造影
Abstract:AIM To explore the application value of contrast transthoracic echocardiography (c-TTE) in screening patent foramen ovale with right to left shunt (PFO-RLS). METHODS A total of 103 patients with suspected PFO due to migraine or unexplained cerebral infarction in the Neurology Department of our hospital underwent c-TTE and contrast transesophageal echocardiography (c-TEE) examinations to observe the positive rate of PFO-RLS detected by c-TTE and c-TEE at rest and under Valsalva maneuver. The results of c-TEE were regarded as the “gold standard” for PFO-RLS diagnosis and the diagnostic efficiency of c-TTE was evaluated under Valsalva maneuver. RESULTS The positive rates of c-tte and c-tee were 38.83% and 40.78% respectively at rest. The positive rates of the two methods were significantly higher under Valsalva action (all P<0.05), 80.58% and 82.52% respectively. There was no significant difference between the positive rates of c-tte and c-tee between the two groups at rest and Valsalva action; Compared with the gold standard c-tee, the positive predictive value of resting c-tte for pfo-rls was 100%, the negative predictive value was 96.82%, the sensitivity was 95.23%, the specificity was 100%, the accuracy was 98.05%, and the consistency kappa value was 0.95. Under Valsalva action, the positive predictive value of c-tte for pfo-rls was 98.79%, the negative predictive value was 85.00%, the sensitivity was 96.47%, the specificity was 94.44%, the accuracy was 96.11%, and the consistency kappa value was 0.87. CONCLUSION c-TTE has high sensitivity, specificity and accuracy in the diagnosis of PFO-RLS patients. As c-TTE is minimally invasive, painless, convenient and easy to be popularized in clinical application, it can be used as an early screening method for PFO-RLS patients. c-TEE should be performed for accurate assessment of PFO morphologies when the closure is planned. -
[1] Abdelghani M, El-Shedoudy SAO, Nassif M, et al. Management of patients with patent foramen ovale and cryptogenic stroke: an update[J]. Cardiology, 2019, 143(1): 62 – 72. doi: 10.1159/000501028 [2] 王艺晓, 刘 禧, 侯 颖, 等. 经颅彩色多普勒发泡试验联合经胸超声心动图声学造影在卵圆孔未闭相关神经症状病因筛查中的应用价值[J]. 临床超声医学杂志, 2021, 23(8): 576 – 580. doi: 10.16245/j.cnki.issn1008-6978.2021.08.003 [3] Caputi L, Carriero MR, Falcone C, et al. Transcranial Doppler and transesophageal echocardiography: comparison of both techniques and prospective clinical relevance of transcranial Doppler in patent foramen ovale detection [J]. J Stroke Cerebrovasc Dis, 2009, 18(5): 343 – 348. doi: 10.1016/j.jstrokecerebrovasdis.2008.12.001 [4] 中华医学会心血管内科分会,中国医师协会心血管内科分会. 卵圆孔未闭预防性封堵术中国专家共识[J]. 中国循环杂志, 2017, 32(3): 209 – 214. doi: 10.3969/j.issn.1000-3614.2017.03.001 [5] Rodrigues AC, Picard MH, Carbone A, et al. Importance of adequately performed Valsalva maneuver to detect patent foramen ovale during transesophageal echocardiography[J]. J Am Soc Echocardiogr, 2013, 26(11): 1337 – 1343. doi: 10.1016/j.echo.2013.07.016 [6] 何 璐, 张玉顺. 单中心1336例经导管封堵卵圆孔未闭患者主要并发症回顾性分析[J]. 中国介入心脏病学杂志, 2019, 27(6): 309 – 314. doi: 10.3969/j.issn.1004-8812.2019.06.003 [7] 谢 坚, 王玉凯, 彭伟英, 等. 经食管超声心动图右心声学造影与对比增强TCD检查在检测隐源性脑卒中患者右向左分流的效果比较[J]. 临床神经病学杂志, 2018, 31(5): 341 – 343. doi: 10.3969/j.issn.1004-1648.2018.05.007 [8] Mojadidi MK, Winoker JS, Roberts SC, et al. Accuracy of conventional transthoracic echocardiography for the diagnosis of intracardiac right-to-left shunt: a meta-analysis of prospective studies[J]. Echocardiography, 2014, 31(9): 1036 – 1048. doi: 10.1111/echo.12583 [9] 陈静婉, 骆丹越, 王戏丹, 等. 经颅多普勒发泡试验筛查缺血性卒中合并卵圆孔未闭的应用价值[J]. 中国超声医学杂志, 2021, 37(1): 46 – 49. doi: 10.3969/j.issn.1002-0101.2021.01.014 [10] Yang X, Wang H, Wei Y, et al. Diagnosis of patent foramen ovale: the combination of contrast transcranial doppler, contrast transthoracic echocardiography, and contrast transesophageal echocardiography[J]. Biomed Res Int, 2020, 2020: 8701759. doi: 10.1155/2020/8701759 [11] 樊 琦, 胡明华, 宋 嫣. 右心声学造影在卵圆孔未闭的诊断价值[J]. 江西医药, 2021, 56(10): 1793 – 1795. doi: 10.3969/j.issn.1006-2238.2021.10.066 -
